NEW CRANAB TZ15 CRANE: POWER, REACH, AND VERSATILITY

We've expanded our catalog with the addition of the new Cranab TZ15, a state-of-the-art crane designed to meet the highest demands of both the recycling and forestry industries. Manufactured by Cranab Slagkraft, a global leader within the Fassi Group, this crane redefines performance and ergonomics standards for demanding work environments.

What lifting capacity and reach does the Cranab TZ15 offer?

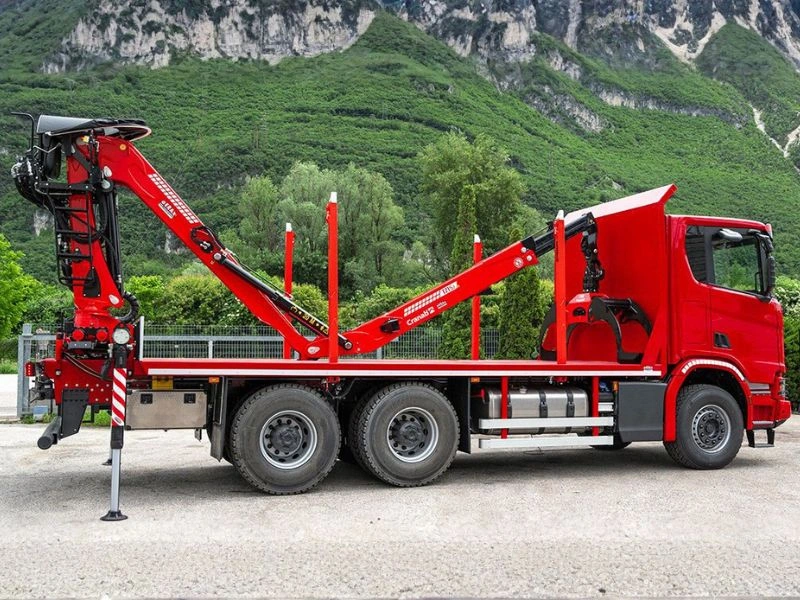

The TZ15 crane is available in two versions: the TZ15.1, with a standard reach of 8.45 m and a lifting capacity of 135 kNm, and the TZ15.2, which extends the reach to 10.45 m thanks to a 4-meter hydraulic extension, while maintaining a lifting capacity of 131 kNm. With a 425° rotation angle and 27 kNm of rotational torque, it offers exceptional maneuverability even in tight spaces.

Is it a comfortable and safe crane for the operator?

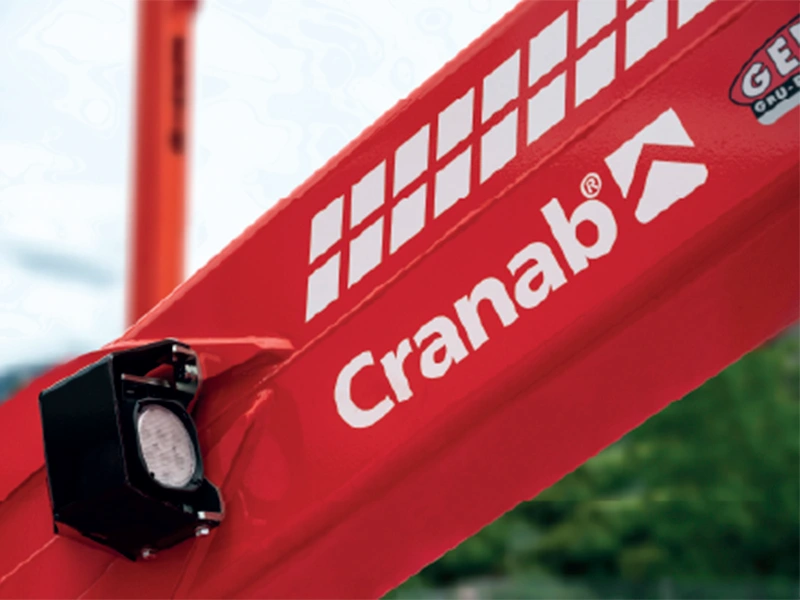

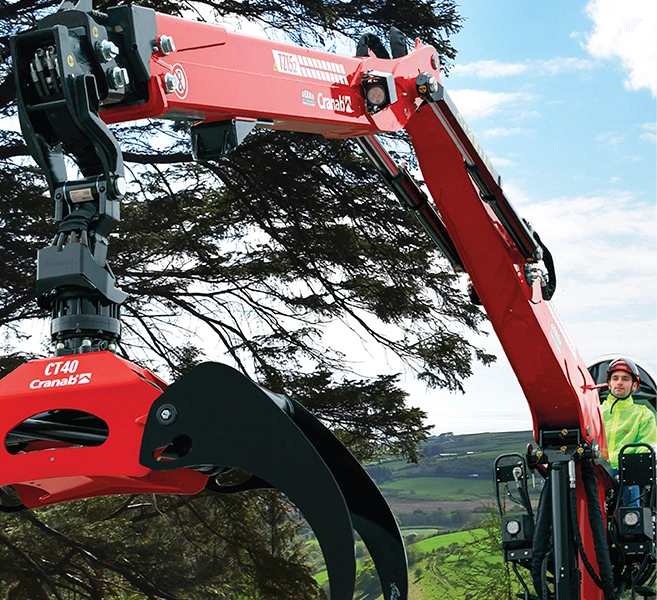

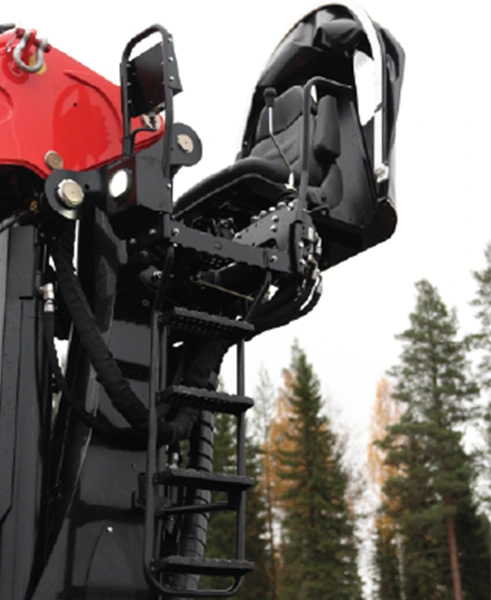

Yes. The TZ15 features a high-seat operator station, configurable to the right, left, or center of the column. Available with mechanical or electric controls—including a joystick—and with integrated LED lights on the boom and workstation, it ensures visibility and comfort during extended workdays. The optional cab further enhances safety and ergonomics.

What accessories and configurations does the Cranab TZ15 crane support?

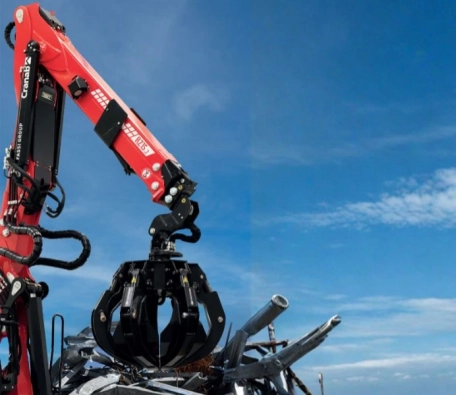

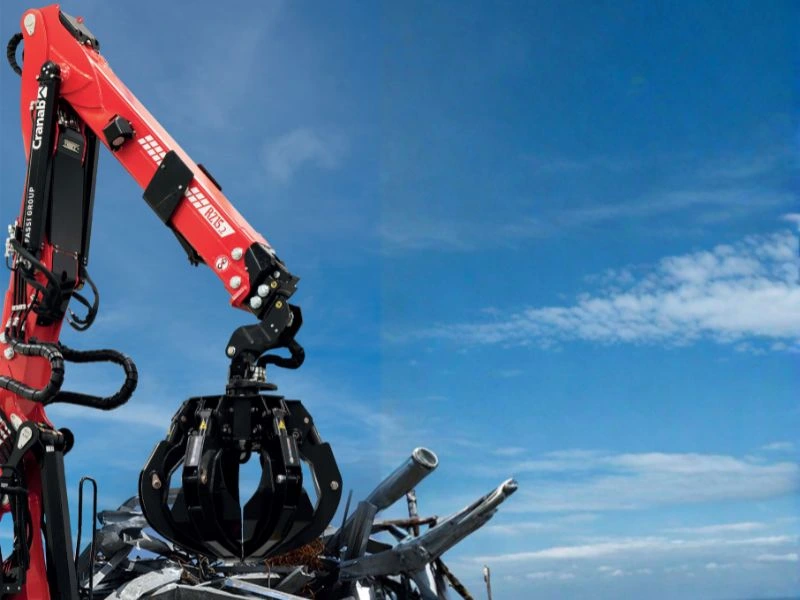

The TZ15 is compatible with a wide range of grapples and grabs in various sizes, adapting to both waste management and the most demanding forestry tasks.

Check availability and configurations with our sales team.
