The design of the structural components is inherited from the F235 & 255A models with rack rotation, while the column and the rotation have been specifically designed for these new models.

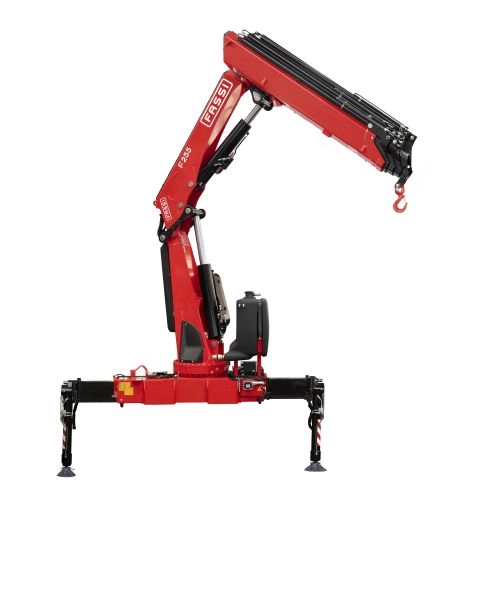

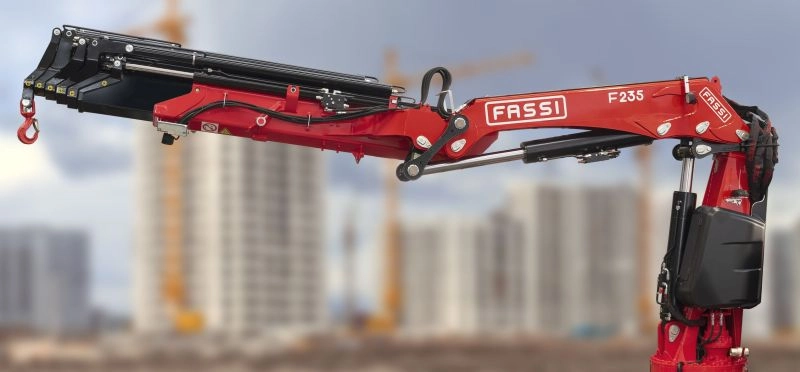

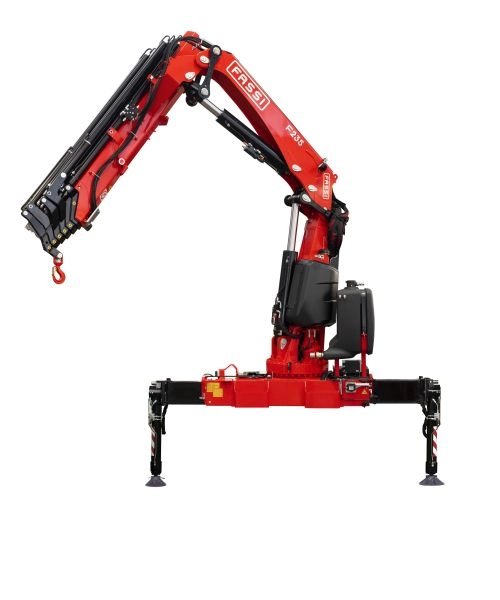

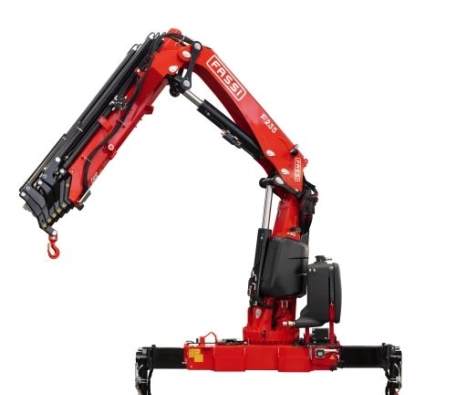

The Fassi F235RA.2 e-dynamic crane is designed according to HC1-HD4 / S2 class and the Fassi F255RA.2 xe-dynamic crane according to HC1-HD5 / S2 class. Class S2 cranes will have twice the useful life in intensive use (100%) than the same crane designed in class S1. To refresh the "classifications" of crane design and its performance we recommend reading the post on this subject at: https://bit.ly/3vy83Y9



Both models are equipped with radio control, FX500 moment limiter and hydraulic distributor placed on the column of the crane itself. With the development of this new project, a series of innovations have been introduced such as: mounting with 4 fixing braces (to adapt to the smaller space of the latest generation commercial vehicles, Euro 6, which have an impact on less space behind the cabin), new protective carters on the column, lateral passage of flexible tubes between the column and the main boom, in order to reduce the load area of ​​the crane, especially in the case of rotation with the main arm completely vertical.



For more information and price you can contact by calling tel. 938 498 388 or consult by email by click do aqui.
