September 10, 2025

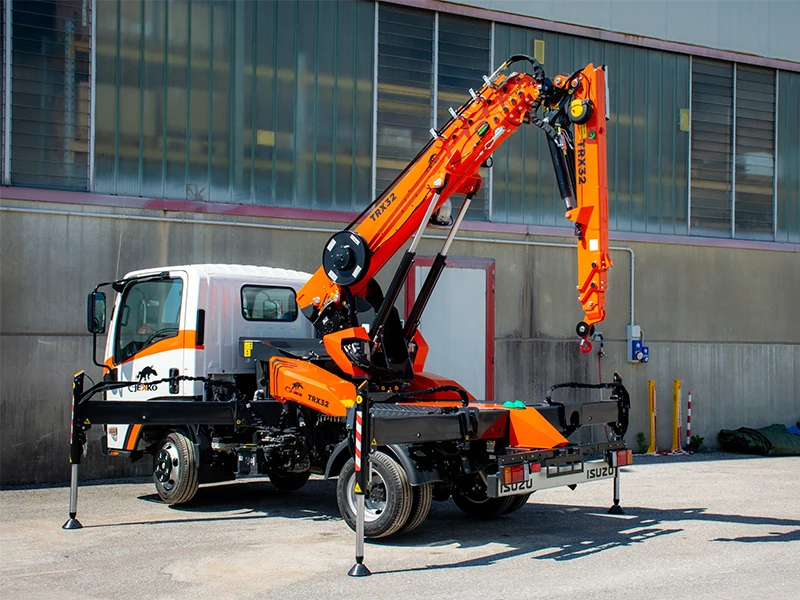

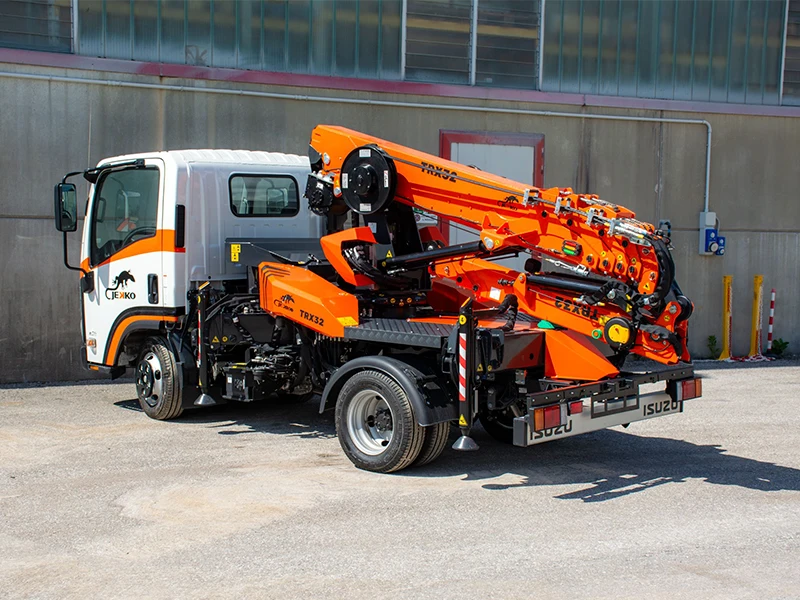

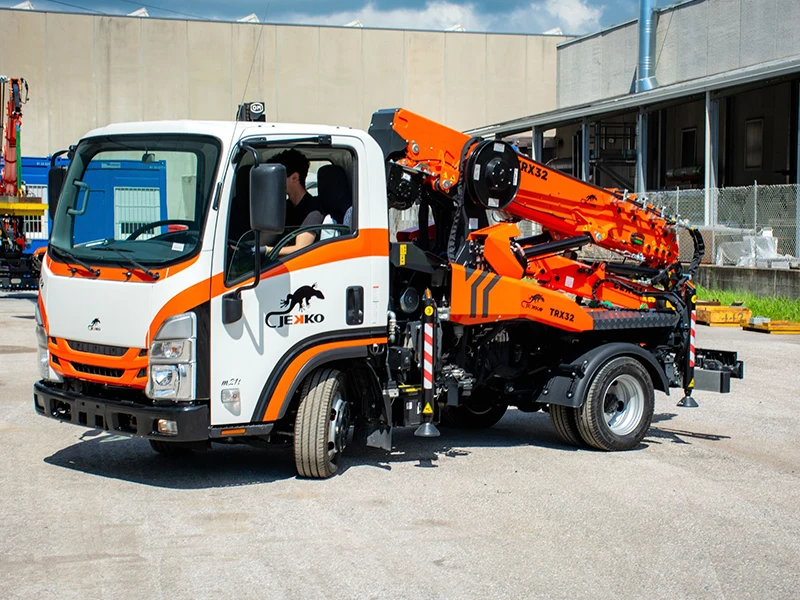

JEKKO TRX32 TRUCK-MOUNTED MINI CRANE
The new compact minicrane that revolutionizes urban transport and lifting.
Today we're talking about Jekko's new TRX32 truck-mounted mini crane, a piece of equipment that transforms the lifting sector in urban environments with space restrictions. With a total weight of just 3,500 kg, this equipment is positioned as the ideal solution for work in historic centers, narrow streets, and projects where maneuverability is essential.
Compact design without compromising performance
The TRX32 minicrane stands out for its compact dimensions of 4,998 x 1,860 x 2,269 mm, while maintaining a width of just 1.86 meters, allowing it to navigate in tight spaces where conventional equipment cannot access. Despite its compact size, the mini crane offers a maximum lifting capacity of 3,200 kg, making it one of the most powerful in its category.
The TRX32's intelligent design includes a tail radius that stays within the truck's footprint, eliminating one of the main drawbacks of vehicle-mounted cranes in confined spaces. This feature allows for work in locations where traditionally road closures or traffic reorganization would be necessary due to lack of space.
Operational versatility with three configurations

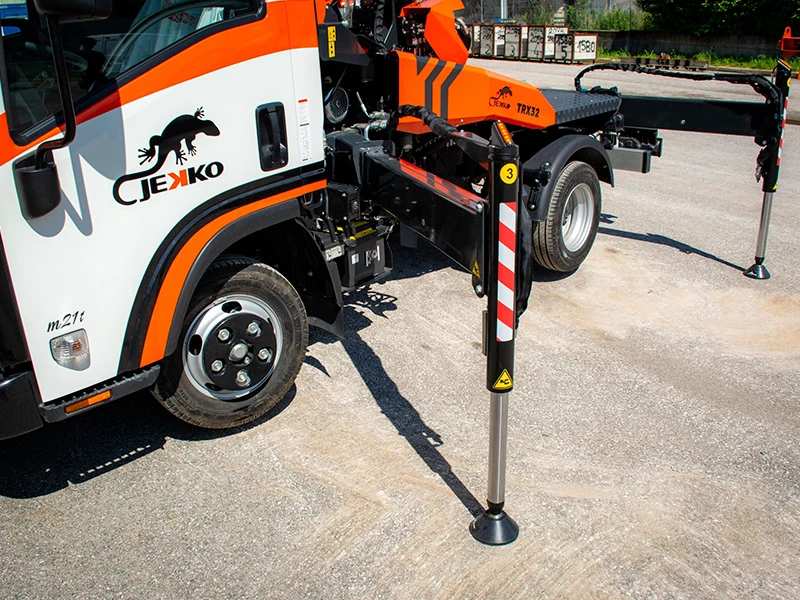

One of the key innovations of the TRX32 mini truck crane is its outrigger system with three distinct working modes:
- Closed outriggers: For extremely tight spaces where equipment can barely fit.
- Partially Open Outriggers: When work space is limited but greater stability is required.
- Fully Open Outriggers: For maximum lifting capacity with complete stability.
This operational flexibility allows the operator to adapt the configuration to the specific conditions of each job, optimizing both safety and performance.

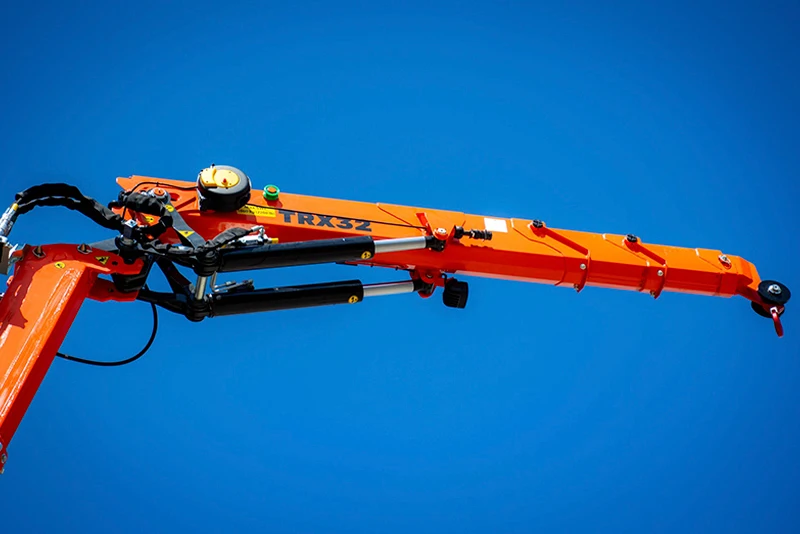

Telescopic crane and optional jib
The TRX32 mini truck crane features a telescopic crane with variable lengths from 2.6 to 10.3 meters, providing a maximum working height of 10.3 meters with the main boom. For applications requiring greater reach, a JIB1000 hydraulic jib with a quick and automatic installation system is available, extending the maximum height to 17.5 meters.
The jib system, with a 1,000 kg capacity, uses hydraulic technology for installation, significantly reducing setup times and allowing quick transitions between configurations according to job needs.
Power system innovation: Bi-Energy
Jekko has equipped the TRX32 mini truck crane with a revolutionary dual-power system called "Bi-Energy," which combines:
- Vehicle diesel engine: For transport and outdoor work, ensuring low consumption and high reliability.
- Electric Power Pack: 100% electric crane motor for indoor operation with zero emissions and noise.
This hybrid configuration allows for work in any environment, from exterior construction sites to projects in historic buildings or enclosed spaces where emissions and noise are prohibited. The single-phase electric motors are designed to adapt to the electrical specifications of any country.
Safety systems and regulatory compliance
The Jekko TRX32 mini crane has been designed in accordance with European standard EN 13000:2014, incorporating advanced safety systems such as the LMI (Load Moment Indicator), which automatically limits loads according to the configuration and working position. The load tables have been calculated considering wind conditions of 13.8 m/s and safety factors appropriate for professional use.

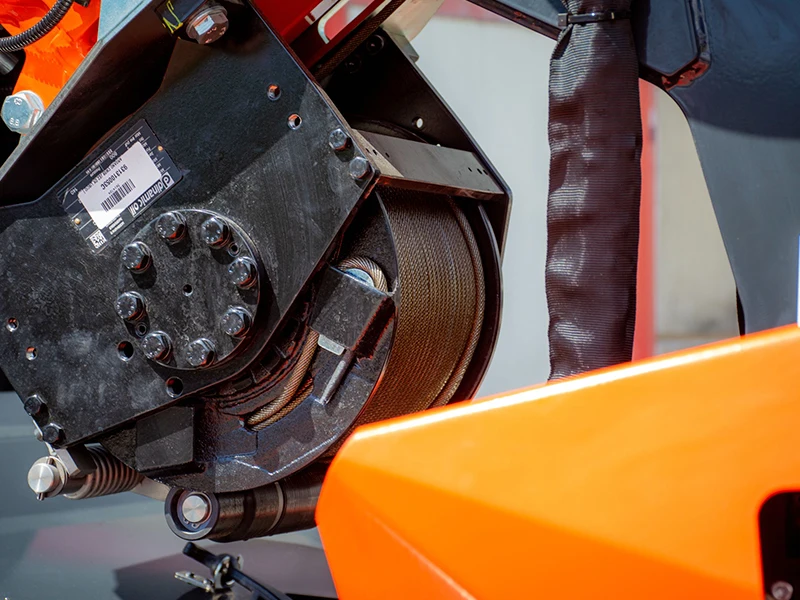

The sheave system includes multiple configurations, from single line to four falls, allowing capacities from 800 kg in a single line to 3,200 kg with four falls, adapting to different types of work and optimizing lifting speed.
Driving with a type B license
One of the TRX32's most significant competitive advantages is that it can be driven with a conventional Type B driver's license, remaining within the 3,500 kg total weight limit. This considerably expands the pool of available operators and reduces operating costs as no special driving licenses are required.
Ideal applications
The TRX32 is specifically designed for:
- Work in historic urban centers
- Maintenance of facades in narrow streets
- Work inside industrial warehouses
- HVAC and industrial equipment installations
- Renovation work in confined spaces
- Projects requiring quiet, emission-free operation
In short, the Jekko TRX32 truck-mounted mini crane represents a significant advance in the compact mini crane segment, combining performance
