  • New Fassi F1750R-HXP Techno crane
  • New Fassi F1750R-HXP Techno crane
  • New Fassi F1750R-HXP Techno crane


April 12, 2022

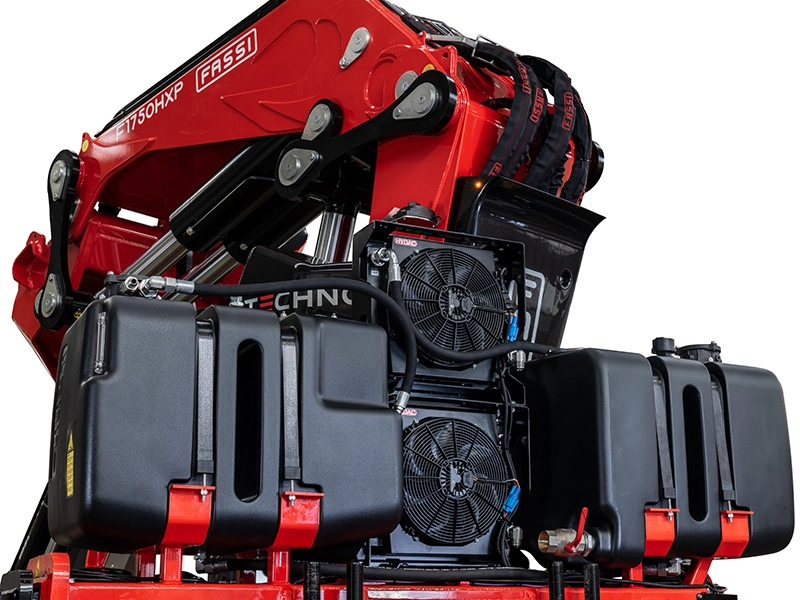

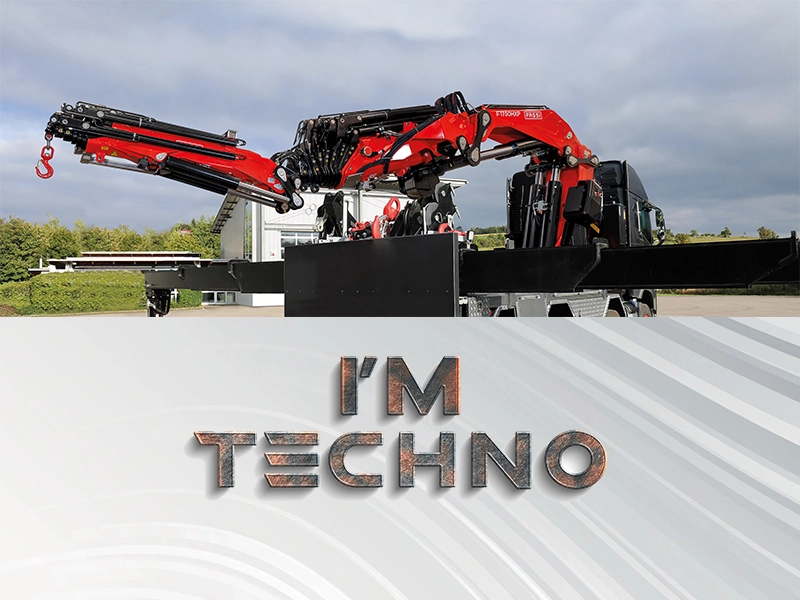

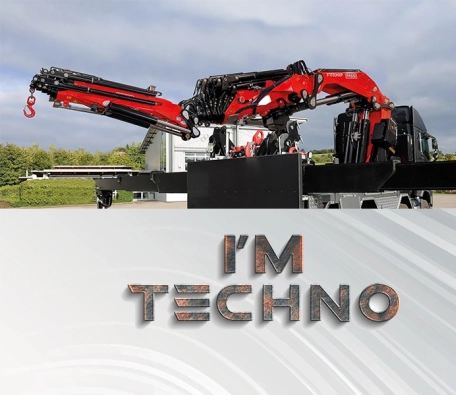

INTRODUCING NEW "TECHNO" CRANE: FASSI F1750R-HXP TECHNO

The TECHNO ranges grows with the Fassi F1750R-HXP TECHNO crane: a completely new geometry, both on column and secondary boom for a lifting power capacity class of 132 tm.



We are happy to introduce the Fassi F1750R-HXP TECHNO, a new reference in the heavy dutry range of cranes. Less than a year on from the launch of the first new TECHNO range model, the F1450R-HXP crane, a further step has been taken in expanding the range, one that has come well ahead of schedule; the new Fassi F1750R-HXP is ready for production.



Main features on Fassi F1750R-HXP TECHNO are:



  • The X-Design decagonal section of the booms and secondary arm allows for better distribution of forces between the guide shoe and the chassis beam, reducing the thickness of the latter and, therefore, the overall weight. The section also improves load capacity, particularly when in vertical configuration, gaining a 57% increase in performance over the traditional hexagonal arm design.
  • The FX990 is the new electronic control system, connected to a series of significant hardware and software innovations; a new control unit, the new FX901 touchscreen display, new firmware for the limiter and dynamic controller, a new FSC/TECHNO stability system and new FassiLim software.
  • Class: HC1 HD5 S2. (
  • Clase de pertenencia: HC1 HD5 S2. (remember that a crane designed in class "S2" is designed to work intensively twice as long as a crane designed in class S1), complete info at: https://bit.ly/3LUvJOs

This crane is also available with hydraulic extension L826, and the design has been conceived to facilitate the use of the crane in combination with the winch. This solution satisfies the need to simplify the folding of the crane with winch and jib.



Fassi F1750R-HXP TECHNO crane - SUMMARY



    • Lifting capacity: 132 tm - 1295 kNm
    • Maximum hydraulic outreach: 31.8 m (with jib)
    • Overall dimensions: w 2.58 m, l 2.54 m, h 2.61 m

Electronic/hydraulic equipment:



      • IMC integral control system
      • FX990 control unit
      • D900 digital hydraulic distributor bank
      • V7S radio remote control unit
      • ADC dynamic control
      • FX991 touchscreen display
      • electronic flow sharing
      • XF system



Features:



    • Dual linkage
    • X-DESIGN decagonal boom section
    • XP device
    • ProLink system
    • Continuous rotation on slew ring

For further information on this crane please contact our sales team here.
